Funkenprüfer HSK-PST100

Beschreibung

zum Abfunken der Schweißnähte zur Dichtheitsprüfung

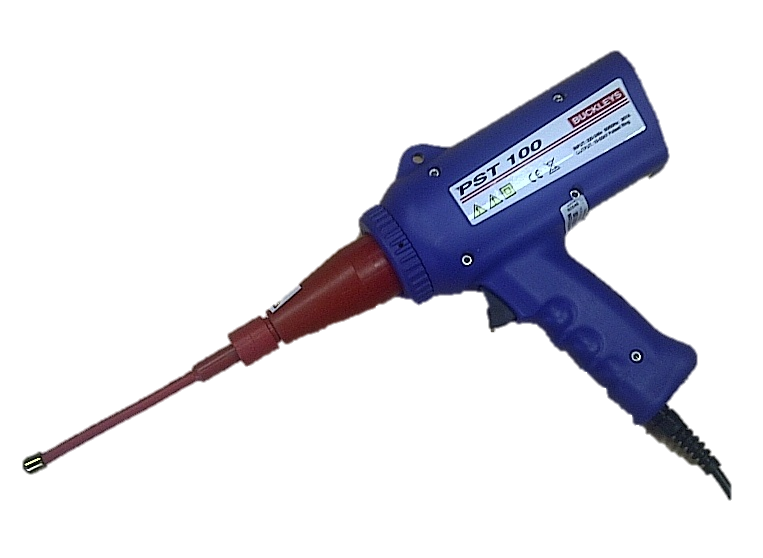

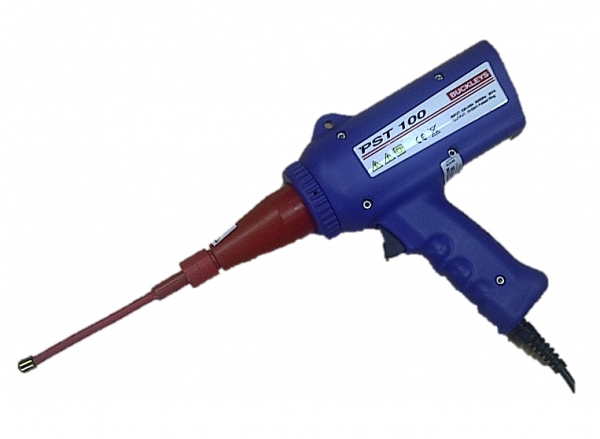

The PST 100 Spark Tester provides a quick and
cost effective method of inspection on thick
coatings and linings. Coating thicknesses of
between 3 and 30mm can be tested.
It can be widely used for testing butt-welded and
overlap joints in the plastics & rubber, petrochemical
and pipeline construction industries.
A flexible probe is included with the unit but
additional insulated extension rods and electrodes
can be supplied, if required, for specific
applications. However, to ensure the stability of the
output voltage, large electrodes should not be
used. The recommended maximum size is 150mm
for all High Frequency equipment.

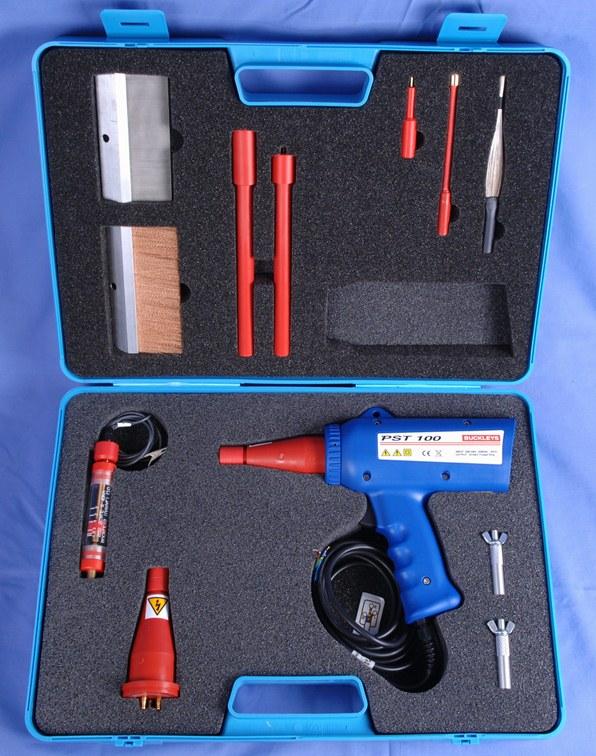

A specially created Accessory Kit is available which
includes an executive-style carrying case and a
range of electrodes suitable for use with the PST
Spark tester (see data sheet T51).
BASIC KIT (ref: T50) comprises:
PST-100 unit, 230v mains (ref: T50), 150mm long
Flexible Probe and operating instructions

TECHNICAL SPECIFICATION

• Output voltage range: 10 – 55kV
• Output: Pulsed ring
• Fully CE compliant
• Mains voltage: 230v AC 50/60 Hz (Ref: T50)
• Weight (Unit only): 1.05Kg
• Dimensions (Unit only): 6cm wide x 20cm high x 27cm long
• Packed Weight (basic kit): 1.4Kg
• Dimensions (packed):41cm x 36cm x 14cm
